Application to a synthetic ISM map

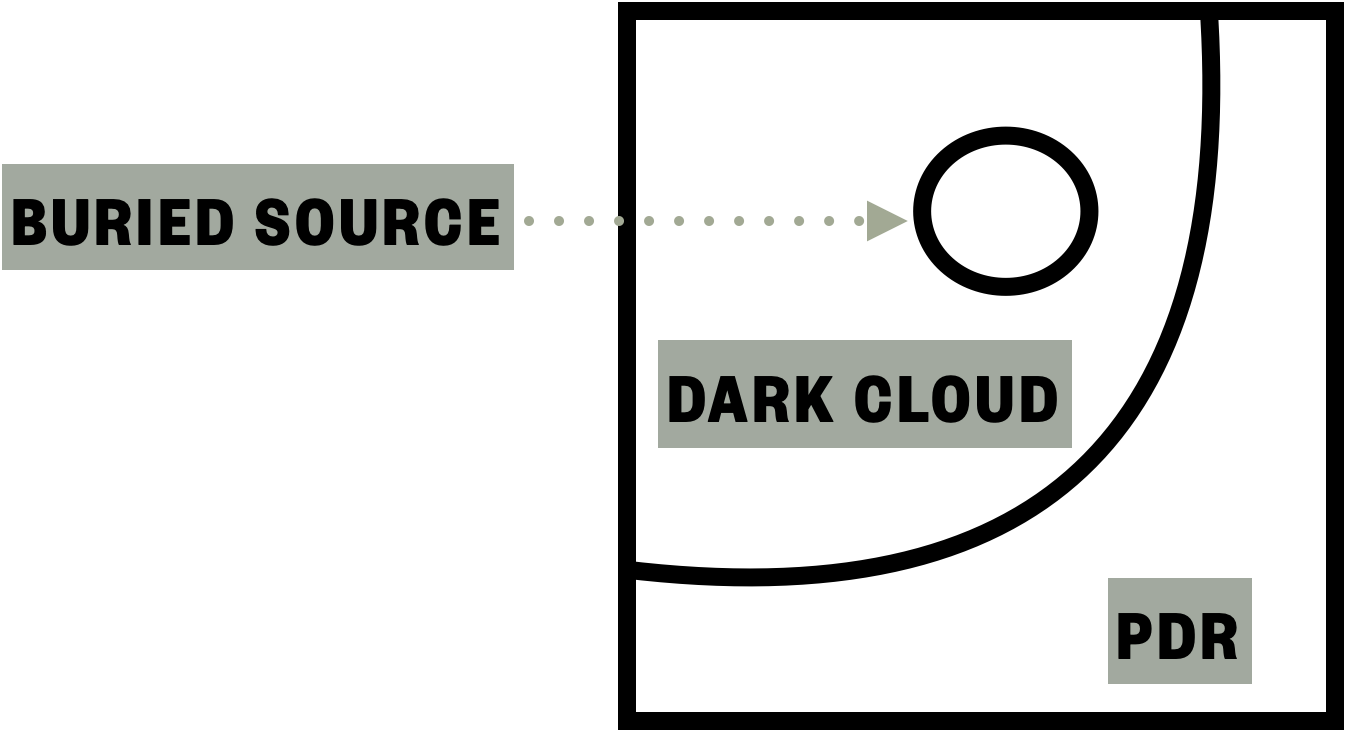

This example appears in Section IV.C of Palud et al. [2023]. It studies a synthetic molecular cloud seen edge on. The figure below illustrates the structure of this molecular cloud.

The considered forward map is the neural network approximation of the Meudon PDR code derived in Palud et al. [2023]. It takes as inputs \(D=5\) physical parameters:

• an observational nuisance parameter \(\kappa \in [0.1, 10]\)

• a thermal pressure \(P_{th} \in [10^5, 10^9]\) K cm \(^{-3}\)

• a radiation field intensity \(G_0 \in [10^0, 10^5]\) (Habing units)

• a visual extinction \(A_V \in [1, 40]\) mag

• an inclination angle \(\alpha \in [0, 60]\) deg

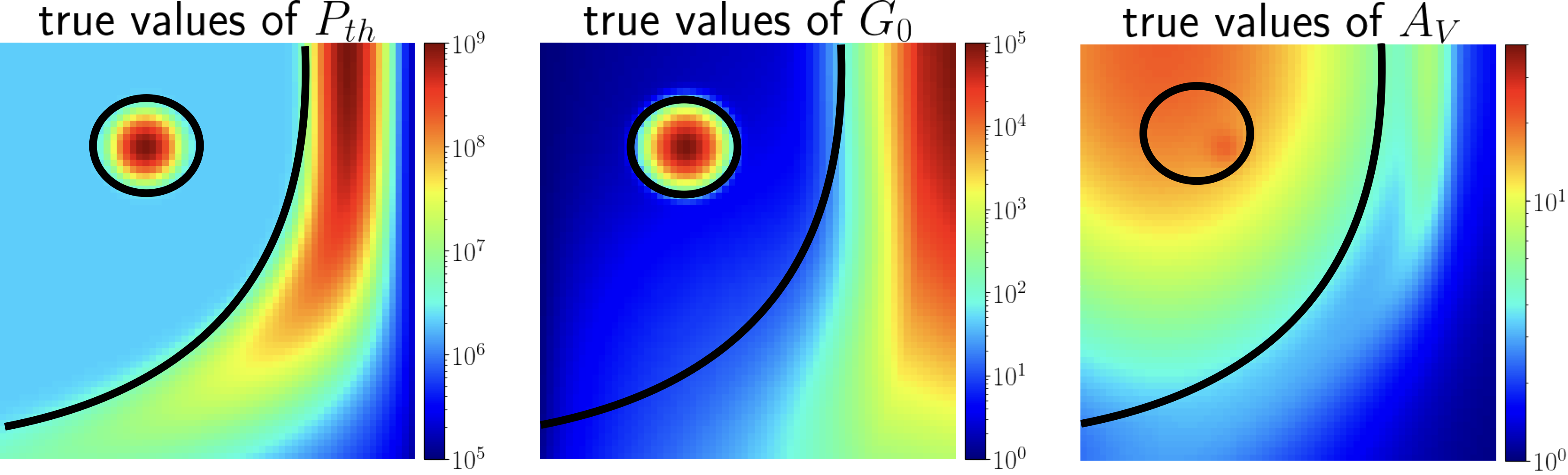

In this toy case, the inclination angle is set to \(\alpha=0\) deg, while the others are inferred. Here are the true maps of the thermal pressure, radiation field intensity and visual extinction. The full map of \(\kappa\) is set to 1.

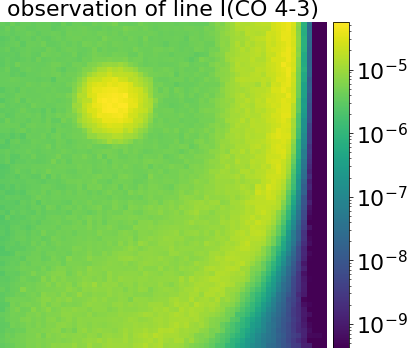

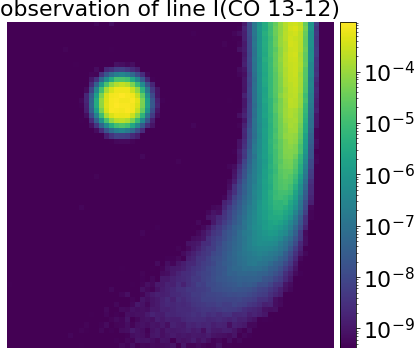

The forward model is restricted to \(L=10\) CO lines. These lines are generated from the true maps and altered with additive noise, multipliative noise and censorship:

Python simulation preparation

Here are the classes that are necessary to sample from this distribution. The green classes indicate the already implemented classes, and the red classes indicate the classes to implement.

For astrophysics applications, all required classes are already implemented.

Python file

Here is the python file to execute to run the sampling on this toy case:

toy_case_nn.py

from beetroots.simulation.astro.toy_case.toy_case_nn import SimulationToyCaseNN

if __name__ == "__main__":
    yaml_file, path_data, path_models, path_outputs = SimulationToyCaseNN.parse_args()

    params = SimulationToyCaseNN.load_params(path_data, yaml_file)

    SimulationToyCaseNN.check_input_params_file(
        params,
        data_validation.schema,
    )

    simulation = SimulationToyCaseNN(
        **params["simu_init"],
        yaml_file=yaml_file,
        path_data=path_data,
        path_outputs=path_outputs,
        path_models=path_models,
        forward_model_fixed_params=params["forward_model"]["fixed_params"],
    )

    simulation.main(
        params=params,
        path_data_cloud=path_data,
    )

YAML file

nn_N64_fixed_angle.yaml

simu_init:
    simu_name: "astro_toy_N64_fixed_angle"
    cloud_name: "astro_toy_N64"
    max_workers: 10
    #
    params_names:
        kappa: $\kappa$
        P: $P_{th}$
        radm: $G_0$
        Avmax: $A_V^{tot}$
        angle: $\alpha$
    #
    list_lines_fit:
        - "co_v0_j4__v0_j3"
        - "co_v0_j5__v0_j4"
        - "co_v0_j6__v0_j5"
        - "co_v0_j7__v0_j6"
        - "co_v0_j8__v0_j7"
        - "co_v0_j9__v0_j8"
        - "co_v0_j10__v0_j9"
        - "co_v0_j11__v0_j10"
        - "co_v0_j12__v0_j11"
        - "co_v0_j13__v0_j12"
#
to_run_optim_map: true
to_run_mcmc: true
#
forward_model:
    forward_model_name: "meudon_pdr_model_dense"
    force_use_cpu: false
    fixed_params: # must contain all the params in list_names of the Simulation object. Values are in linear scale.
        kappa: null
        P: null
        radm: null
        Avmax: null
        angle: 0.0
    is_log_scale_params: # defines the scale to work with for each param (either log or lin)
        kappa: True
        P: True
        radm: True
        Avmax: True
        angle: False
#
#
sigma_a_float: 1.38715e-10
sigma_m_float_linscale: 1.1
#
# prior indicator
prior_indicator:
    indicator_margin_scale: 1.0e-1
    lower_bounds_lin:
        - 1.0e-1 # kappa
        - 1.0e+5 # thermal pressure
        - 1.0e+0 # G0
        - 1.0e+0 # AVtot
        - 0.0 # angle
    upper_bounds_lin:
        - 1.0e+1 # kappa
        - 1.0e+9 # thermal pressure
        - 1.0e+5 # G0
        - 4.0e+1 # AVtot
        - 60.0 # angle
#
list_gaussian_approx_params: []
mixing_model_params_filename: ["best_params.csv"]
#
# spatial prior
with_spatial_prior: true
spatial_prior:
    name: "L2-laplacian"
    use_next_nearest_neighbors: false
    initial_regu_weights: [10.0, 2.0, 3.0, 4.0]
#
# sampling params
sampling_params:
    map:
        initial_step_size:  5.0e-4
        extreme_grad: 1.0e-5
        history_weight: 0.99
        selection_probas: [0.2, 0.8] # (p_mtm, p_pmala)
        k_mtm: 20
        is_stochastic: false
        compute_correction_term: false
    mcmc:
        initial_step_size:  3.0e-5
        extreme_grad: 1.0e-5
        history_weight: 0.99
        selection_probas: [0.5, 0.5] # (p_mtm, p_pmala)
        k_mtm: 10
        is_stochastic: true
        compute_correction_term: false
#
# run params
run_params:
    map:
        N_MCMC: 1
        T_MC: 500 #2000
        T_BI: 20 # 100
        batch_size: 20
        freq_save: 1
        start_from: null
    mcmc:
        N_MCMC: 1
        T_MC: 500 #10_000
        T_BI: 15 #2_500
        plot_1D_chains: true
        plot_2D_chains: true
        plot_ESS: true
        plot_comparisons_yspace: true
        batch_size: 10
        freq_save: 1
        start_from: "MAP"
        regu_spatial_N0: !!float inf # sets to infinite
        regu_spatial_scale: 1.0
        regu_spatial_vmin: 1.0e-8
        regu_spatial_vmax: 1.0e+8
        list_CI: [68, 90, 95, 99]

Sampling

To run the sampling with nn-based approximation of forward model from the repo root folder:

python beetroots/simulations/astro/toy_case/toy_case_nn.py nn_N64_fixed_angle.yaml ./data/toycases ./data/models .

Minimum mean square error (MMSE) estimator, i.e., mean of the iterates of the Markov chain (the average is evaluated in the scaled space):

Size of the 95% credibility intervals (written as a multiplicative factor):

As detailed in Palud et al. [2023], both the MMSE and the credibility intervals are physically meaningful.

The data/toycase folder contains other resolutions with other .yaml input files. For instance:

python beetroots/simulations/astro/toy_case/toy_case_nn.py nn_N10_fixed_angle.yaml

python beetroots/simulations/astro/toy_case/toy_case_nn.py nn_N10_fixed_AV.yaml
